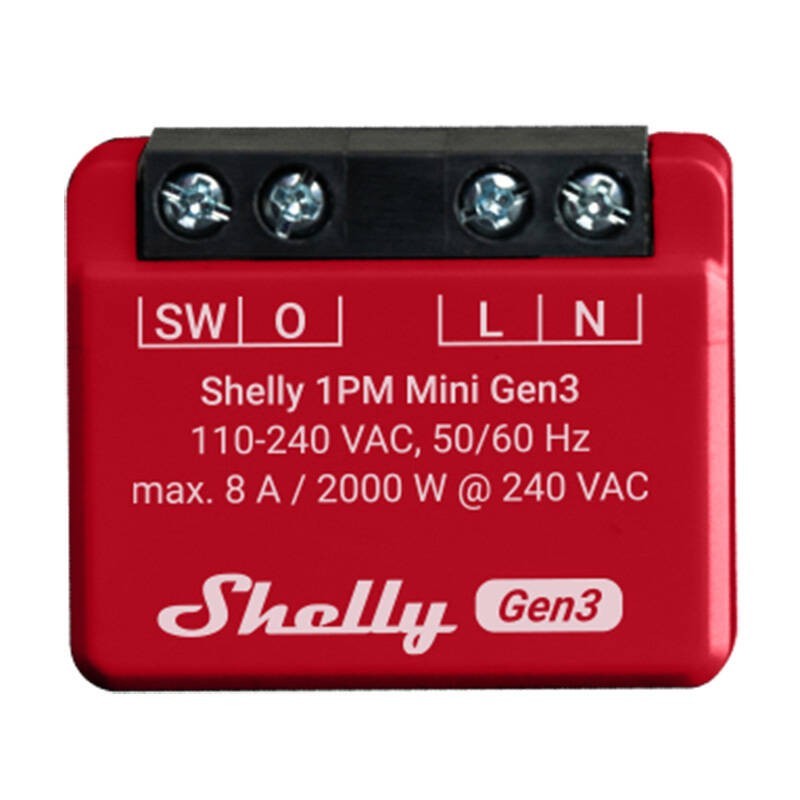

Shelly 1PM Mini Gen3 Controller
Shelly 1PM Mini Gen3 is a compact smart switch that ot only allows you to remotely control electrical appliances, but also measures their energy consumption. It allows you to control and monitor your appliances from your smartphone, tablet, computer or home automation system, o matter where you are. It's an improved version of the Shelly Plus 1PM Mini with an advanced processor and more memory.
Compact design, maximum performance
Despite its compact size, the Shelly 1PM Mini Gen3 offers top-level performance - all thanks to its advanced processor and increased memory. Its compact design means you can easily install it in standard wall boxes, even in space-constrained areas. It is ideal for mounting behind outlets, light switches or other electrical devices.
Remote control
The Shelly 1PM Mini Gen3 allows you to remotely control your electrical devices from anywhere, using your smartphone, tablet or computer. You o longer have to worry if you left a light on or forgot to turn off a fan. With the Shelly 1PM Mini Gen3, you can do it easily, even when you're away from home. What's more, the controller is compatible with home automation platforms such as Amazon Alexa, Google Smart Home and Samsung SmartThings, so you can conveniently control your devices with simple voice commands.
Expand the scope of your etwork
With the Shelly 1PM Mini Gen3, you can also extend the range of your Wi-Fi etwork for IoT devices. This device acts as a signal booster, picking up Wi-Fi signals and amplifying them to cover a larger area. This ensures that your IoT devices will always stay connected.
Monitor your power consumption
Now you'll gain full control over your home's power consumption! With power consumption metering, you can monitor how much energy your connected devices are using in real time. This ot only allows you to understand which devices are the most energy-intensive, but also helps you make informed decisions on energy savings. So you can effectively manage your home's energy consumption while saving money on your electricity bills!
Smart home on your terms
The controller offers the ability to create automations and work schedules that adapt to your daily life. Would you like the lights to turn on at a certain time of day? Or would you like the fan to automatically turn off after an hour? All this and much more is possible with Shelly 1PM Mini Gen3.
Manufacturer
Shelly
Model
1PM Mini Gen3
Power supply
110 - 240 VAC
Relay
Non-contact NO, 1-pole, micro-contact
Power consumption
< 1.2 W
External protection
Breaking characteristic B or C, max. 10 A maximum rated current, min. 6 kA interrupting capacity, class 3 energy limitation
Max. switching voltage
240 VAC
Max. switching current
8A/240 VAC
Max. switching power
2000 W
Power measurement
Yes
Voltage surge protection
Yes
Current overload protection
Yes
Power overload protection
Yes
Internal temperature sensor
Yes
Wi-Fi communication protocol
802.11 b/g/n
Range
Up to 30 m indoors and up to 50 m outdoors
Bluetooth wireless communication protocol
4.2
Range
Up to 10 m inside and up to 30 m outside
CPU
ESP-Shelly-C38F
Flash memory
8 MB
Schedules
20
Webhooks (URL Actions)
20 with 5 URLs per action
Scripts
Yes
MQTT
Yes
UDP
Yes
Advanced scheduling
Yes
KVS (Key-Value Store)
Yes
Dimensions
29 x 34 x 16 ±0.5 mm
Weight
18 ±1 g
Cable cross section
0.2 to 2.5 mm² / 24 to 14 AWG (single wire, multicore and bootlace terminated)
Exposed wire length
6 to 7 mm / 0.24 to 0.28 in.
Mounting
In a wall box
Housing material
Plastic
Ambient operating temperature
-20 °C to 40 °C / -5 °F to 105 °F
Humidity
30 % to 70 % RH
Max altitude
2000 m
